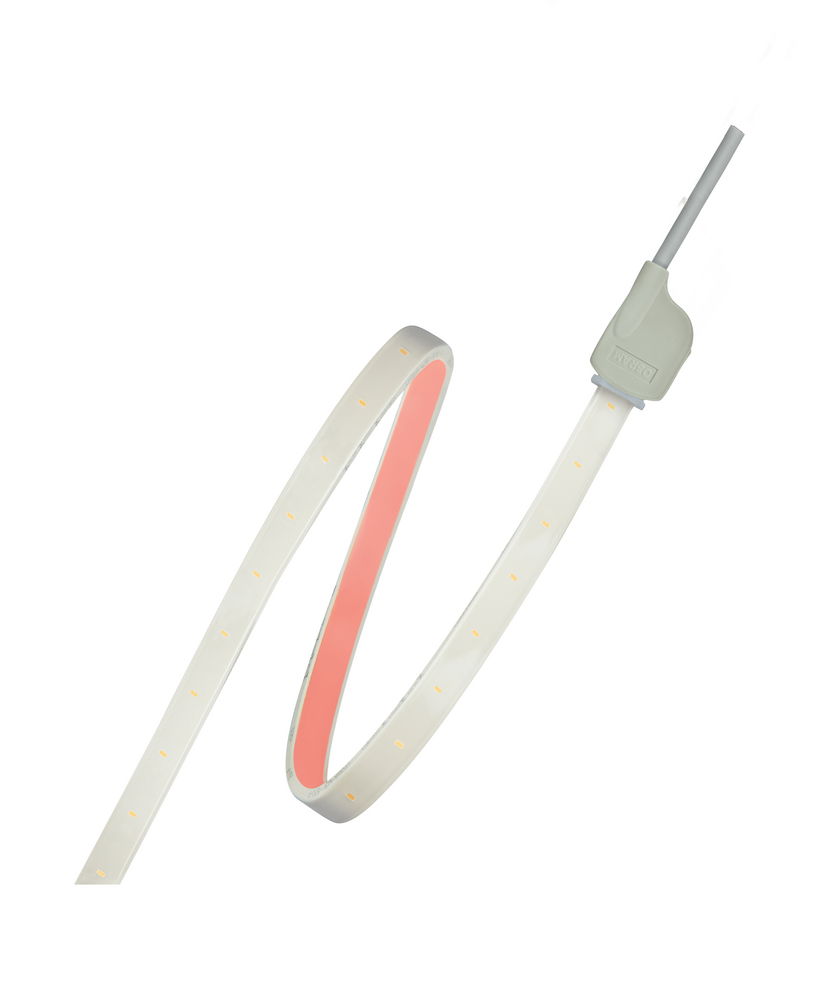

LINEARlight FLEX® Protect POWER 1200 -G3-830-09

LINEARlight FLEX® Protect POWER 1200 -G3-830-09

LED-Module für professionelle und industrielle Anwendungen. Produkteigenschaften: High brightness linear LED light sources available in 1200 lumens per meter up to 3000 lumens per meter (365 lumens per feet to 915 lumens per feet). IP67 protected modules and connectors for outdoor operation. Flexible and field cuttable every 100mm (3.94") to support design freedom. Long operational length per single power feed possible. Each reel is shipped with a pre-installed IP67 input connector. Optimally paired with OPTOTRONIC 24V power supplies. Erhöhte Zuverlässigkeit durch Reel-to-Reel-Verfahren. Dimmbar mit PWM-Technologie. Module can be bent to conform to curved surfaces with a radius as tight as 1.9" (50 mm). . Produktvorteile: Extra strong self-adhesive backside for easy mounting. Extra-long lifetime - 50,000 hours (L70B50). . Anwendungsgebiete: Architectural integration. Border lighting. General lighting. Façade accent lighting. Object integration. Organically shaped luminaires. Path and contour marking. Signage applications. .

Produktkennzeichen

SKU: 4052899481664
EAN: 4052899481664
GTIN: 4052899481664
MPN: LFP1200 -G3-830-09

Spezifikationen

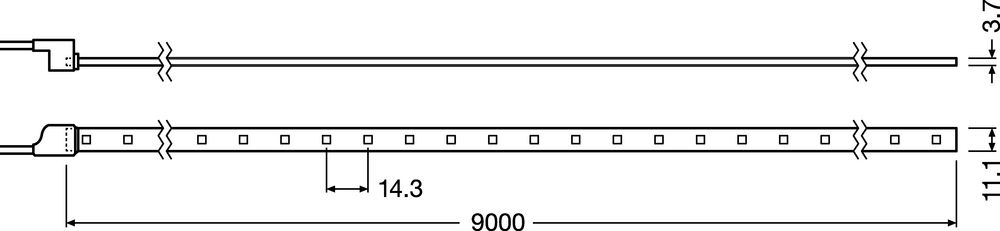

Breite 11.00 mm
Länge 9000
Polzahl 2
Lichtfarbe -
Montageart Aufbau
Ausführung Band
Durchmesser -
Höhe/Tiefe 4.50 mm
Leuchtmittel LED nicht austauschbar
Mit Endstück Ja
Betriebsgerät -
Lampenspannung 24 - 24 V
Leistungsfaktor -
Schutzart (NEMA) sonstige
Art der Verdrahtung -
Lichtstrom je Meter 1200 lm
Mit Schutzabdeckung Ja
Kleinster Biegeradius 50 mm
Lampenleistung je Fuß 3.2 W
Farbwiedergabeindex CRI 80-89
Farbtemperatur einstellbar -
Schutzklasse nach IEC 61140 -
Konstant-Lichtstrom-Regelung Nein
Ausstrahlungswinkel einstellbar nein
Kompatibel mit Google Assistant Nein
Anzahl der Leuchtmittel pro Fuß 21
Bemessungslebensdauer L70/B50 bei 25 °C 60000 h
Lichtstromerhalt bei mittl. Nutzungsdauer 50.000 h bei 25 °C Umgebungstemp. -
